CEA WELDING MATRIX X HF
CEA WELDING MATRIX X HF
Details
THE ULTIMATE SOLUTION FOR DC TIG
TIG INVERTER WELDING EQUIPMENT

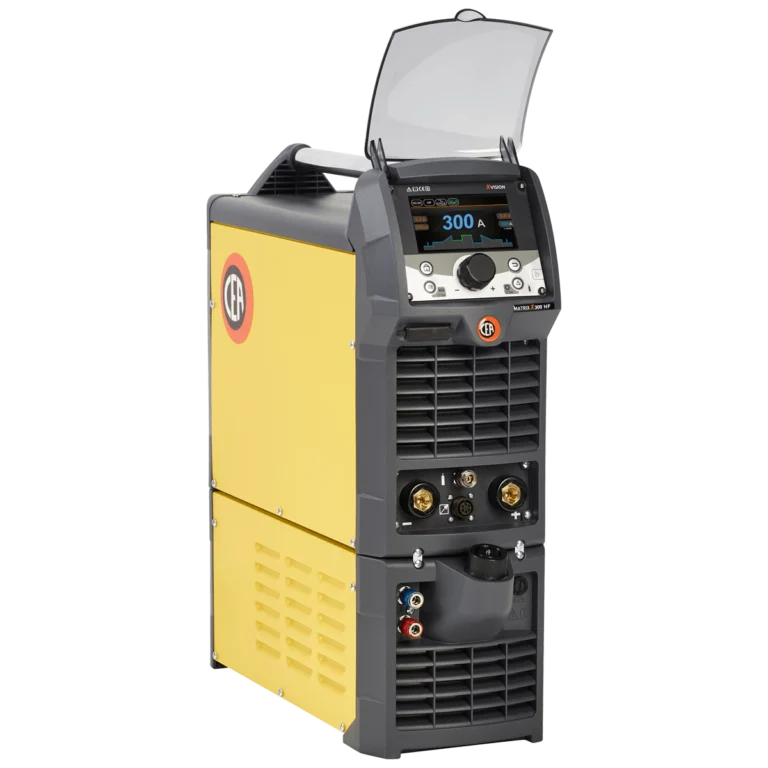

MATRIX X HF are high efficiency TIG HF inverter power sources, studied to satisfy the most advanced and sophisticated requests in the TIG welding market.
MATRIX X HF enable TIG welding of mild and stainless steel, copper and its alloys and they also offer excellent performance in MMA welding with the most difficult basic and cellulosic electrodes.
X Vision interface
MATRIX X HF are standard equipped with the new X VISION interface, simple and complete, for the total control and monitoring of all the welding parameters. Their excellent characteristics, coupled with the high technology of the digital control, allow a perfect stability of the welding arc, granting high performance TIG welding in the more sophisticated industrial applications and maintenance.
Single phase with PFC available
Thanks to PFC the single phase MATRIX X 220 HF optimizes the amount of energy consumption by allowing the use of this powerful power source with 16 A fuse mains and power generator sets.
Other characteristics
-
TIG DC minimum current from 1A
-
Excellent welding characteristics in TIG with all materials and MMA with any type of electrodes, cellulosic included
-
Smart HF IGNITION for an accurate and prompter Arc Striking in all conditions
-
Use of Up/Down TIG torches will enable to adjust welding parameters and JOBS
-
Reduced weight and size, easy-to-carry
-
Compact water cooling equipment integrable (optional)
-
Simple automation: TSA1 TIG KIT (Optional)
Technical Features

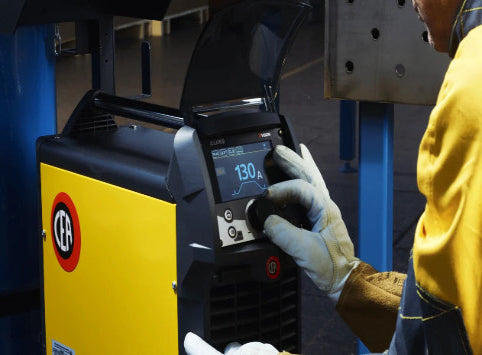

X VISION CONTROL DISPLAY TIG
X Vision control display with “ONE CLICK KNOB” encoder for the pre-setting and monitoring of all the welding parameters:
- User friendly interface
- Digital Ammeter and Voltmeter with welding current pre-setting and Hold Function of the last read value
- Welding mode “cycle”
- Personalized welding program storing and recalling
- Possibility of copying job/s easily from one machine to another via USB
- Advance setting infographic
COLDTACK
Innovative spot welding device to achieve precise and safe joining with a minimal thermal input.
Multi-cold.TACK function grants cold spotting in a rapid sequence, thus further widening the benefits of the single spot. Thanks to Perfect-Point function, cold.TACK allows to obtain the most precise spot positioning.
TIG RCT - RUNNING COLDTACK
RCT is the acronyms of Running cold.TACK; indeed, the TIG RCT process allows to benefit of all the cold.TACK advantages, by repeating the single cold.TACK point in a continuous way, in order to achieve a cold and perfect welding seam.
Using TIG RCT the welding seam is much colder in comparison to the one achievable with Pulse TIG and it represents the ideal solution to weld thin materials with a very low heat transfer. TIG RCT is a direct current process not available in AC welding.
PULSE MODE
SYN PULSE: SYN PULSE will synergically generate pulse frequency and base current
ULTRA FAST: Adjust frequency up to 2000 Hz
FAST PULSE: Adjust frequency from 0,5 Hz to 500 Hz
SLOW PULSE: Adjust separately current/time of peak and base
CYCLE FUNCTION
“CYCLE” function allows to continuously switch between two current values, by previously preselected simply pressing the torch trigger. This function is most suitable for welding different thickness profiles, requiring a continuous current adjustment change.
MMA FUNCTIONS
Adjustable Arc Force for choosing the best welding arc dynamics. Adjustable Hot Start to improve the arc striking with difficult electrodes Electrode Anti-sticking function.
